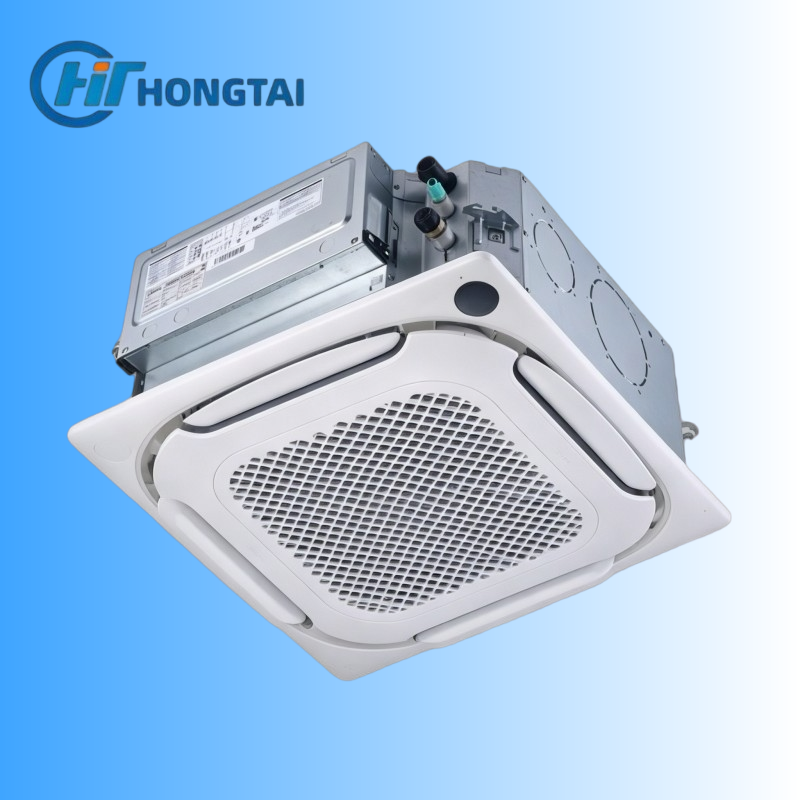

V8 Compact Four-Way Space Saving Budget Friendly AC Minimal Ceiling Space Required

  • 1
  • 2

Brand Name : Hongtai,Midea

Certification : CB, ISO

Place of Origin : China

Product Name : Compact Four-Way Cassette

Capacity Range : 2.2-7.1kW

Power Supply : 220-240V / 1Ph / 50Hz

Sound Pressure Level : 26-39 dB(A)

Dimensions (W×H×D) : 620×620×250 mm

Airflow Rate : 540-950 m³/h

Contact Now

V8 Compact Four-Way Space Saving AC Unit
Product Overview

The Compact Four-Way Cassette features a revolutionary design that fits neatly within standard 620mm × 620mm ceiling tile dimensions, eliminating cutting requirements and significantly simplifying installation. Despite its compact footprint, this unit delivers powerful performance with 360° airflow distribution and improved round air discharge for uniform temperature control.

Key Features
Standard Tile Compatibility
Fits perfectly within 620×620mm ceiling tile dimensions, eliminating custom modifications and reducing installation costs.
360° Uniform Airflow
Round air discharge design ensures consistent temperature distribution with 20% increased air supply port area.
Individual Louver Control
All four louvers can be independently adjusted via wired remote controller for customized airflow direction.
Soft Wind Mode
Directs airflow toward ceiling to create draft-free, windless environment for natural comfort.
Long Distance Air Delivery
30Pa static pressure ensures adequate airflow for spaces with up to 3.5m ceiling heights.
7 Fan Speed Options
Multiple speed settings provide precise control over airflow and comfort levels.
Ideal Applications
Office Spaces
Retail Boutiques
Conference Rooms
Small Shops
Medical Clinics
Hotel Lobbies
Certifications & Standards
Eurovent Certified Performance
ERP Energy Efficiency
RoHS Compliant
Technical Specifications
Capacity Range2.2-7.1kW
Power Supply220-240V / 1Ph / 50Hz
Sound Pressure Level26-39 dB(A)
Airflow Rate540-950 m³/h
Dimensions (W×H×D)620×620×250 mm
Net Weight16.0-18.5 kg
External Static Pressure30 Pa
Airflow Angles40°-70° (5-step)
