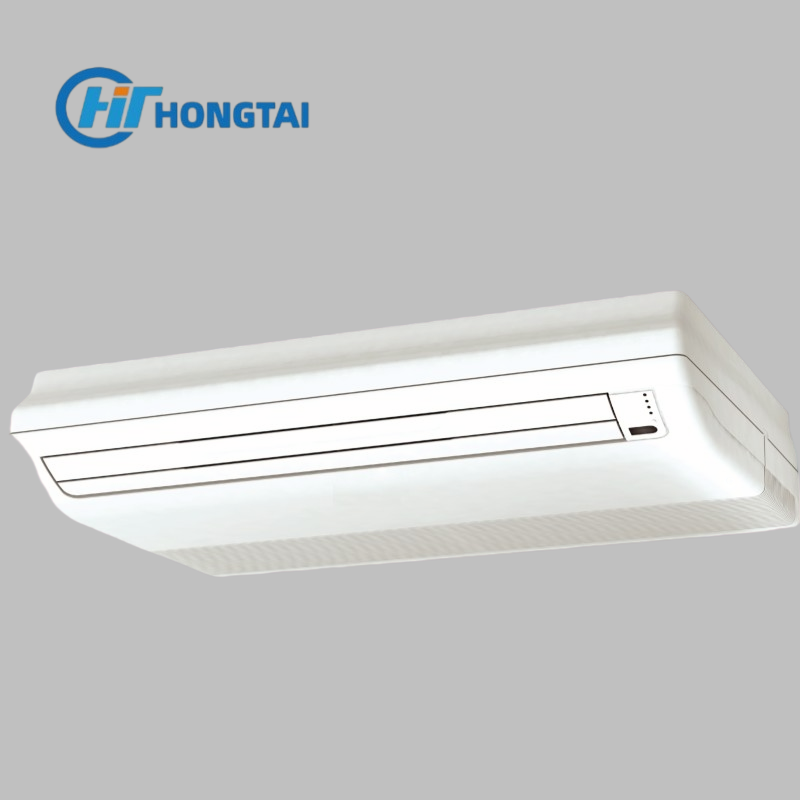

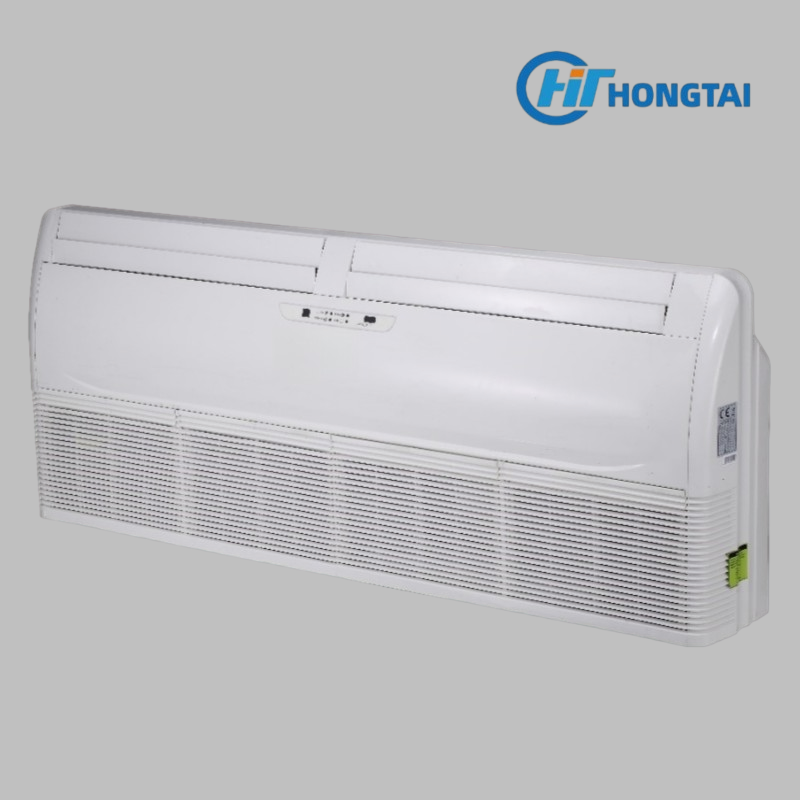

V8 Ceiling Floor AC Two-in-One Installation for Limited Spaces
Two Ways to Stand: The Ultimate in Installation Flexibility
The Ceiling Floor Units represent the ultimate in installation flexibility. Designed for both horizontal ceiling installation and vertical floor/wall mounting, this versatile unit adapts to rooms where traditional installation options are limited. The sleek, modern appearance complements any interior while the advanced DC motor technology ensures whisper-quiet operation and exceptional energy efficiency.
The 5-step louver control provides adjustable air supply angles from 35° to 65°, allowing precise customization of airflow direction for optimal comfort. The dual-thermistor control system monitors temperature via both the wired controller and indoor unit, ensuring accurate and consistent climate control throughout the space.
With airflow rates up to 2206 m³/h, the Ceiling Floor unit provides rapid temperature adjustment for rooms of various sizes, while the auto cooling/heating changeover automatically switches between modes based on room conditions.
Key Features
- Dual Installation Modes – Adaptation to any space with both horizontal ceiling installation and vertical floor/wall mounting options
- 5-Step Louver Control – Precision airflow with adjustable air supply angles from 35° to 65°
- Dual-Thermistor Control – Accurate temperature monitoring via both wired controller and indoor unit
- Auto Cooling/Heating Changeover – Intelligent operation that automatically switches modes based on room conditions
Applications
Limited Wall Space – Floor-standing alternative for wall-restricted rooms
Large Open Offices – Flexible positioning for open plan spaces
Reception Areas – Professional appearance with powerful performance
Conference Rooms – Flexible positioning for different room layouts
Retail Spaces – Adaptable installation for changing layouts
Historical Buildings – Dual installation options for preservation requirements
Certifications & Standards
ISO 9001:2015 – Quality Management System
ISO 14001:2015 – Environmental Management System
CE Certification – European market compliance
ERP Directive – Energy efficiency requirements
RoHS Compliant – Hazardous substances restriction
IEC 60335 – Safety standards compliance
Technical Specifications
| Parameter |
Specification |
| Capacity Range |
3.6 - 14.0 kW (12.3 - 47.8 kBtu/h) |
| Power Supply |
1-phase, 220-240V, 50Hz |
| Cooling Capacity |
3.6 - 14.0 kW |
| Heating Capacity |
4.0 - 16.0 kW |
| Cooling Power Input |
16 - 140 W |
| Heating Power Input |
16 - 140 W |
| Airflow Rate |
424 - 2206 m³/h (7 speeds) |
| Sound Pressure Level |
25 - 51.5 dB(A) |
| Net Dimensions (W×H×D) |
1069-1649×674×234 mm |
| Net Weight |
24.7 - 36.4 kg |
| Refrigerant Type |
R410A/R32 |
